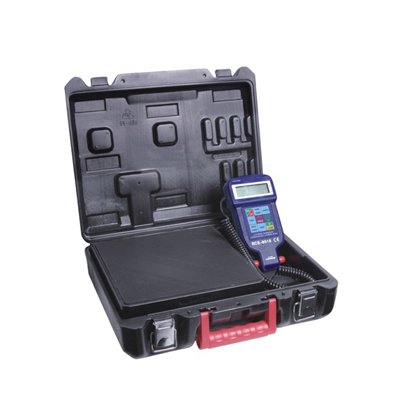

PROGRAMMABLE REFRIGERANT CHARGING SCALE
INTRODUCTION
The RCS-9010 utilize the most technologically advanced
and precise refrigerant meter available today with features
that can not be found anywhere else. It is ideal for HVAC and
refrigeration service, inciuding critical Charging of small
refrigeration systems. With the RCS-9010 you can measure
weight in both metric and English units.
The RCS-9010 is programmable, and has a built-in alarm to
indicate a programmed threshold has been exceeded.
FEATURES
- High-visibility LCD display
- Measures weight in kgs and lbs
- Built-in memory remembers all previous settings
- Rugged, compact design
- Long battery life
- High accuracy and resolution
- Programmable
- Can be calibrated in the field with inexpensive reference weight
Battery Power Low
Scale Overload
Scale Malfunction-causes include overload,moisture,
damage from mistreatment
NOTE: TO prevent damage, never exceed the rated capacity of the RCS-9010/RCS-9020.
CERTIFIED: Calibrated To Standards Traceable To The National Institute Of Standards And Technology(N.I.S.T.)
|
ITEM |
RCS-9010 |
RCS-9010 |
|
CAPACITY |
90KGS/198 LB |
100kgs / 220 lb |
|
ACCURACT |
±0.5% OF READING +/-1 LEAST |
±0.5% OF READING +/-1 LEAST |
|
RESOLUTION |
0.25 OZ / 5G |
0.5 OZ / 10G |
|
PLATFORM SIZE |
8-3/4″×8-3/4″223×223mm |
8-3/4″×8-3/4″223×223mm |
|
POWER |
5×1.5 V ALKALINE BATTERY (7.5VDC) |
5×1.5 V ALKALINE BATTERY (7.5VDC) |
|
DIMENSIONS |
23.2×23.2×5.8 CM |
23.2×23.2×5.8 CM |
|
BATTER LIFE |
60 HOURS CONTINUOUS USE |
60 HOURS CONTINUOUS USE |
|
OPERATION TEMPERATURE |
10℃（50F-122F） |
10℃（50F-122F） |
|
WEIGHT |
2.74KG(6.03 IBS) |
2.74KG(6.03 IBS) |
