REFRIGERANT GAS LEAK DETECTOR
INTRODUCTION

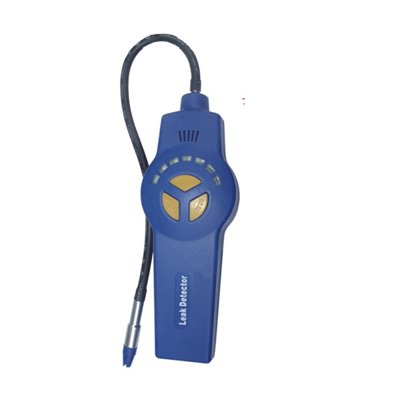

The HLD-102 Refrigerant Gas Leak Detector is most technologically advanced of it is
kind. The HLD-102 low power requirements, small size and its sensitivity combine
to create a tool which is easy to handle and ultra effective at locating even the
most difficult-to-find leaks. Fully SAEJ1627 compliant the HLD-102 will detect leaks
as small as 0.1oz / yr (3g/year) in R12,R22,R134a and other halogen refrigerant
systems. HLD-102 has added useful features to enhance the usability. 1-5 levels
range for real-time sensitivity cycle adjustment. 6 pieces of LED displays the leak
degree in large range in the form of″gradually lights the light″. And also indicates
the sensitivity level. Tactile keypads make the operation more convenient.
|
Dimensions |
17CM×6CM×3.8CM |
|
Batteries |
2×1.5V′AA′Alkaline Batteries(3VDC) |
|
Battery Life |
40 hours |
|
Sensitivity |
＜3g / year (0.1 oz / yr) |
|
Sensor lifetime |
approx. 30 hours |
|
Operation temperature |
32-122°F(0-50℃) |
|
Warm up time |
＜2 se c. |
|
Response time |
Instantaneous |
|
Reset time |
instantaneous |
|
Probe length |
12″(30 cm) |
At this time, remove the detector and reset
the sensitivity to a right level, and check it again to confirm the exact leak position.
|
