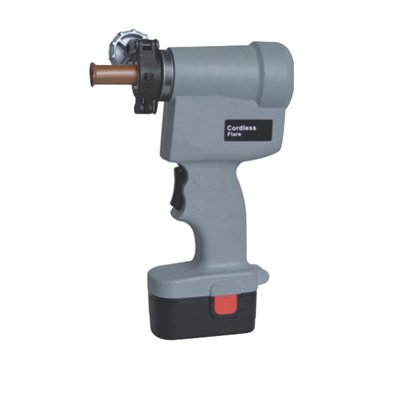

CORDLESS ECCENTRIC CONE FLARING TOOL
INTRODUCTION
The CT-E800 cordless eccentric cone flaring tool is our new high capability produet. Cordless, battery power. this product can be used for 1/ 4″~3/4″(6mm~19mm) tubing. Special eccentric cone structure make smooth and uniform sizes 45 degree flares. Eccentric cone rebound automatically when work finished.
FEATURES
- Cordless tool: easy to carry
- Battery power: save energy and work faster than manual tool.
- Human engineering design body shell: comfort to grasp and use.
- Eccentric cone structure: make perfect 45 degree flares without scratches.
CORDLESS FLARING TOOL OPERATION GUIDE:
- Deburr inside of tubings.
- Choose flare clip accordingly to fasten the tubings.
- Press‘→’switch to the end.
- Connect flare clip with flaring tool.
- Press‘←’until flare work complet.press‘→’to the end.
- Take off clip from flaring tool and separate flare clip with tubings.
SPECIFICATION:
- 9.6V DC
- Cone speed: 280rpm
- Applicable pipe size: 1/ 4 5/16 3/8 1/ 2 5/8 3/ 4
- BMC Size(1pc):37×33×11cm
- Carton Dimention (4pcs): 45×38×35cm
- 20ft Container Capacity: 1920pcs
Standard Accessories:
- Cutter: 1pc
- Scraper: 1pc
- Stopper plate: 3pcs
SPARE EXPANDER HEADS
|
Item No. |
Inch |
Item No. |
Metric |
|
E800A-01 |
1/4" |
E800M-01 |
6mm |
|
E800A-02 |
5/16" |
E800M-02 |
8mm |
|
E800A-03 |
3/8" |
E800M-03 |
10mm |
|
E800A-04 |
1/2" |
E800M-04 |
12mm |
|
E800A-05 |
5/8" |
E800M-05 |
16mm |
|
E800A-06 |
3/4" |
E800M-06 |
19mm |
|
