ECCENTRIC CONE TYPE FLARING TOOL
- Insert tubing into adjustable opening of tube holding assembly. Position end of tubing approximately 1/8″above the surface of holder.
-
Tighten clamp screw approximately 1/2 to 3/4of a turn beyond free travel position to secure tubing.
-
Be certain flaring cone surface is oiled. Slip yoke over tube holding assembly centering on tubing. Twist yoke clockwise to lock in position. Turn yoke handle clockwise to flare.
For use with soft copper, aluminum and brass tubing. Faceted, hard chrome-finished cone rolls out perfect 45°flares above die block-then automatically burnishes flare face. Original wall thickness is maintained at base of flare. New slip-on yoke permits use in tight quarters where there is little space between nut and tube end. Larger handle, with better leverage, and precision threads on feed screw make flaring effortless. Heat treated dies firmly grip tubing. Satin chrome and black finish.
1. Flares rolled out above die bar by super-smooth faceted cone. Makes stronger flares.
2. Unique detention mechanism for rapid engagement and release of die blocks.

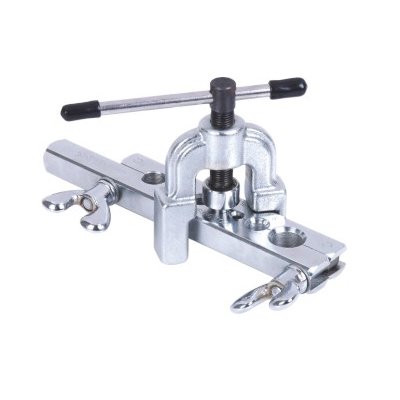

CT-195A/CT-195M
45° Flaring Tool
For 3/16″、1/4″、5/16″、3/8″、7/16″、1/2″ &5/8″O.D.
For 4mm、6mm、8mm、10mm、12mm、14mm &16mm O.D.
|
